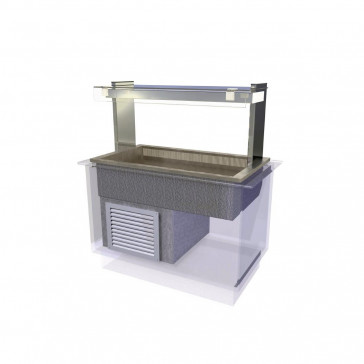

Kubus Drop In Cold Well Self Service 1525mm

Capacity: 4x 1/1 GN. 1525mm Wide
SKU: CW633

Availability: In stock

Excl. VAT: £3,951.08 Incl. VAT: £4,741.30
Kubus

Product Description

Details

Illuminate, chill and protect refrigerated food or drink with CED's rectangular shaped Kubus self help cold well drop in display. This energy efficient 4/1 GN size refrigerated display chills by hydrocarbon refrigerant (r290) - a solution that's kinder to the environment and your budget. The display fits into a counter top and fitting the air grills supplied provides the ventilation needed for the underslung refrigeration condensing unit. The self help superstructure is made from bright polished steel and aluminium rectangular profiles, with flat, toughened glass sneeze screen protection to the customer side of the display. Product illumination is from diffused lighting in the rectangular profile gantry, which also houses an eye level digital temperature display and 'temperature lockable' control panel, to the operator side of the display. The display has 24 hour operation as standard and holds food core between 2°C to 5°C. Modular removable deck plates in the chilled island well make for easier cleaning and an integral condensate water evaporator eliminates the need for site drainage. The display comes complete with air inlet grills, lifting kit and a 2m lead and plug top for installation. GN's Sold Separately.

Additional Information

Additional Information

Featured Product N/A
SKU CW633
Brand Kubus
Material Stainless Steel & Aluminium
Additional information Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile
Additional information2 Features eye level gantry mounted digital temperature display & control panel (to operator side of display). Controls can be fitted to customer side of the display on request
Additional information3 24 hour operation as standard
Additional information4 Product illumination is provided from diffused lighting within the gantry
Additional information5 Flat glass profile is designed to compliment other units within the Kubus range
Additional information6 Ventilation grills and installation lifting kit are supplied with the display
Additional information7 Ventilation grills and installation lifting kit are supplied with the display, together with a 2m lead for connection to a single 13 amp socket
Box quantity N/A
Capacity 4x 1/1 GN
Dim mix depth N/A
Dimensions 540(H) x 1525(W) x 660(D)mm
Dimensions area N/A
Dimensions ext N/A
Dimensions int N/A
dimensions_shaf N/A
Dimensions shel N/A
Electrical N/A
Installation N/A
Insulation N/A
Material blade N/A
Material ext N/A
Material handle N/A
Material int N/A
Output N/A
Plug fitted Yes
Power 1.22kW, 230V, 13A
Refrigerant R290
Temp range 2°C to 5°C
Therm resolutio N/A
Therm response N/A
Voltage 230V
Warranty N/A
Weight2 136kg
