Product Description
Details

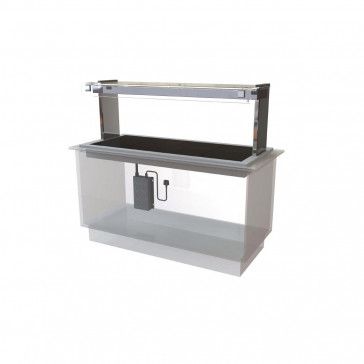

Display, illuminate, heat and protect pre-cooked food with CED's rectangular shaped Kubus self help ceran glass hotplate drop in display. This 3/1 GN size hot display features a 3/1GN heated ceran glass area which accept various sized GN flat bottomed dishes and containers. The display fits into a pre-formed cut out made in a counter top . The self help superstructure is made from bright polished steel and aluminium rectangular profiles, with flat, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the rectangular profile gantry. Base heat and surface heat can be adjusted & 'locked' from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85°C. Modular heater mat elements under the heated ceran glass give even heat spread & the ceran presentation surface makes for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & plug top on a 2M lead. GN's Sold Separately.
Additional Information
Additional Information
Featured Product | N/A |
---|---|
SKU | CW640 |
Brand | Kubus |
Material | Stainless Steel & Aluminium |
Additional information | Rectangular gantry in bright polished steel, powder coated black gantry side panels and aluminium profile |
Additional information2 | Self help application |
Additional information3 | 24 hour operation as standard |
Additional information4 | Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch (to operator side of display) |
Additional information5 | Supplied with lifting kit for installation and concealed control box & UK 3 pin plug top on a 2M lead |
Additional information6 | Flat glass profile is designed to compliment other units within the Kubus range |
Additional information7 | N/A |
Box quantity | N/A |
Capacity | 4 x 1/1 GN |
Dim mix depth | N/A |
Dimensions | 540(H) x 1525(W) x 660(D)mm |
Dimensions area | N/A |
Dimensions ext | N/A |
Dimensions int | N/A |
dimensions_shaf | N/A |
Dimensions shel | N/A |
Electrical | N/A |
Installation | N/A |
Insulation | N/A |
Material blade | N/A |
Material ext | N/A |
Material handle | N/A |
Material int | N/A |
Output | N/A |
Plug fitted | Yes |
Power | 2.6kW, 230V, 13A |
Refrigerant | N/A |
Temp range | 85° to 110°C |
Therm resolutio | N/A |
Therm response | N/A |
Voltage | N/A |
Warranty | N/A |
Weight2 | 69kg |
Weight fabric | N/A |
