Designline Drop In Ceran Glass Hotplate HP4

Capacity: 4 x 1/1 GN. Self Service. 1525mm Wide
SKU: CW619

Availability: In stock

Please Call Our Sales Team For Availability & Prices
Designline

Product Description

Details

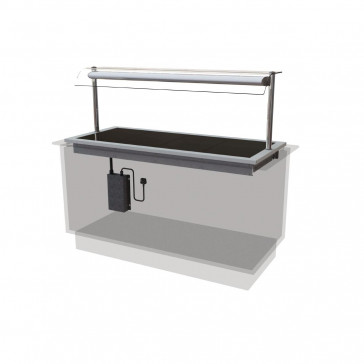

Display, illuminate, heat and protect pre-cooked food with CED's elliptically shaped Designline self help ceran glass hotplate drop in display. This 4/1 Gn size hot display features a 4/1Gn heated ceran glass area which accept various sized Gn flat bottomed dishes and containers. The display fits into a pre-formed cut out made in a counter top . The self help superstructure is made from bright polished steel and alluminum curved profiles, with curved, toughened glass sneeze screen protection to the customer side of the display. Product illumination/ surface heat is provided by infra red quartz heat lamps, housed in the elliptical profile gantry. Base heat and surface heat can be adjusted & 'locked' from the operator side of the gantry, by digital temperature display ( control panel ) and adjustable dimmer switch, mounted at eye level. The display has 24 hour operation & is factory set to hold food core at 85 deg. C. Modular heater mat elements under the heated ceran glass give even heat spread & the ceran presentation surface makes for easier cleaning. The display comes complete with lifting kit for installation and is supplied with a concealed control box & plug top on a 2M lead. GN's Sold Separatley.

Additional Information

Additional Information

Featured Product N/A
SKU CW619
Brand Designline
Material Curved Toughened Glass, Stainless Steel and Aluminium
Additional information Curved display in bright polished steel and aluminium profile
Additional information2 Self help application
Additional information3 24 hour operation as standard.
Additional information4 Features gantry mounted digital temperature display, base heat control panel and top heat control by dimmer switch. (to operator side of display)
Additional information5 Supplied with lifting kit for installation and concealed control box & UK 3 pin plug top on a 2M lead
Additional information6 Curved glass profile is designed to complement other units within the Designline range
Additional information7 N/A
Box quantity N/A
Capacity 4 x 1/1 GN
Dim mix depth N/A
Dimensions 535(H) x 1525(W) x 660(D)mm
Dimensions area N/A
Dimensions ext N/A
Dimensions int N/A
dimensions_shaf N/A
Dimensions shel N/A
Electrical N/A
Installation N/A
Insulation N/A
Material blade N/A
Material ext N/A
Material handle N/A
Material int N/A
Output N/A
Plug fitted Yes
Power 2.6kW, 230V, 13A
Refrigerant N/A
Temp range 85°C to 110°C
Therm resolutio N/A
Therm response N/A
Voltage 230V
Warranty N/A
Weight2 64kg
